Stationary/portable band saw
mod. 91

Stationary band saw with vertical and horizontal right and left cutting, for dry cutting of metallic and non-metallic materials, on a support surface, with the head in a fixed vertical position, or in a vice, with the tilting head, operated manually (diameter max 150 mm).


Technical features

  • Switch with safety device
  • Steel vise
  • Automatic blade tension
  • Cutting capacity: profiled material
  • Electronic speed regulator 25-138 m/min with torque control.
  • Micro-switch for vertical cut
  • Workbench
  • Optional base
  • Spare blades for Model 91 - bi-metallic blade, pitch 8-12 for solid parts, standard parts, section bars and pipes, for low thickness
  • Headphones mandatory (according to DIN EN 352)
Technical data

V kW m/min. Cutting depth Kg T U H Kg
mm mm
230 - Hz 50 - SPH 3,75 20÷110 150 (max) 54 370 700 500 55
48 - Hz 50 - SPH 1,8

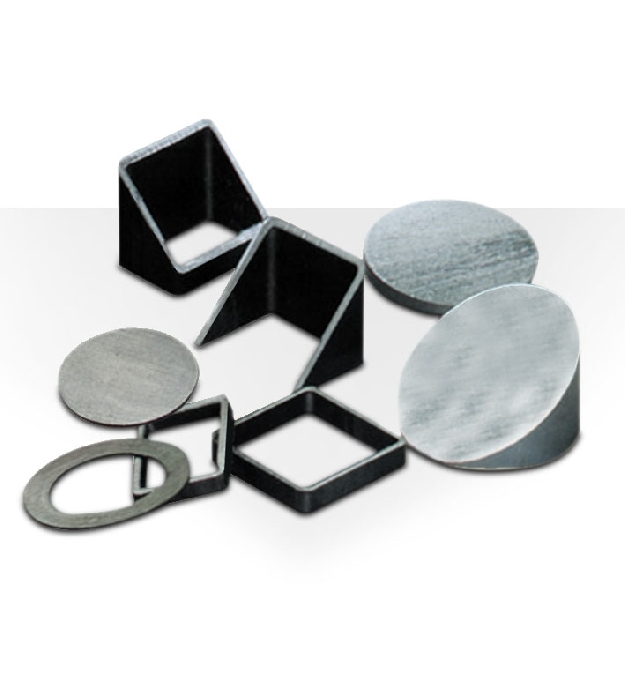

Cutting capacity

mm Cut mm mm mm
1440 x 13 x 0,65 150 125 150x125
45° 75 50 70x50
Overall dimensions
A B C
mm
369 699 498
-->
